Sealed5 Bi-LED Headlight (5×7)

$268.00

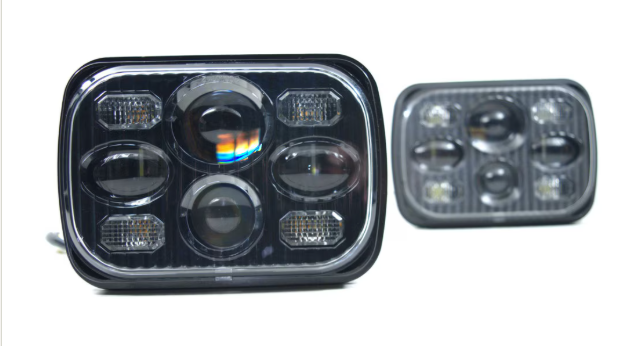

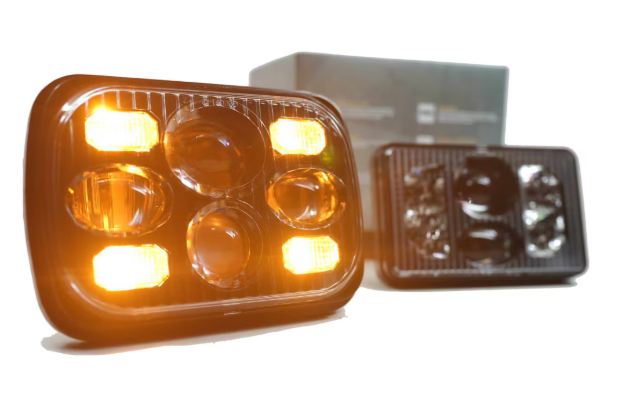

Introducing the Sealed5 LED headlights — a revolutionary solution for 5×7″ Sealed Beam LED lighting needs. These headlights are a game-changer in the market, boasting an all-new, original design that sets them apart from the competition. With Nichia NCSW170C Series LEDs and Morimoto’s Kuria Optic projector lens array, the Sealed5 delivers an impressive 2400 lumens in low beam and a blazing 4300 lumens in high beam mode, ensuring superior visibility on the road. Notably, the Sealed5 features a unique quad-optic setup, offering high-intensity white daytime running lights, low-intensity white parking lights, and high-intensity amber turn signals with switchback functionality. Built with precision and durability in mind, these headlights use top-quality LEDs from Nichia-Japan and Philips-Lumileds, complemented by a UV-coated polycarbonate lens and heavy-duty die-cast housings that double as heat-sinks. Installation is a breeze with standard H4 3-pin male inputs, making the Sealed5 compatible with a wide range of classic cars and trucks, including those with 5×7″, H5054, H6054, or HP6054 headlights. Elevate your lighting game with Morimoto Sealed5 LEDs!

SKU: 615.44 Categories: ,

Description



TECHNICAL SPECIFICATIONS

  • Intensity : 2,400lm (Low), 4,300lm (High)
  • Power : 20w (Low), 35w (High)
  • Input : H4, T-Taps for DRL
  • Traffic Pattern : LHD Only
  • Material : Aluminum (Housing), Polycarbonate (Lens)
  • Light Source : Nichia NCSW170C 5000K (Pure White), Philips Luxeon 3535L

COMPATIBILITY

  • Sealed Beam Standards : H5054, H6054, HP6054

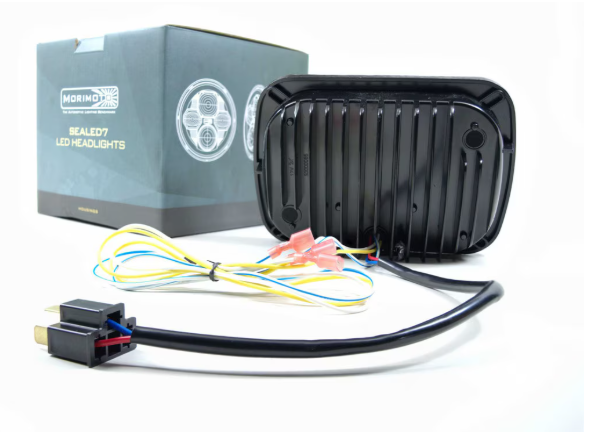

  • Input Wiring : H4 3-pin (low/high/ground)
  • Additional Pinout : Yellow – Turn Signal, White – DRL, White/Blue – Parking Light
  • Note : Some fitments may require modifying the original headlight bucket to accommodate the heat sink of the Sealed5
