Description

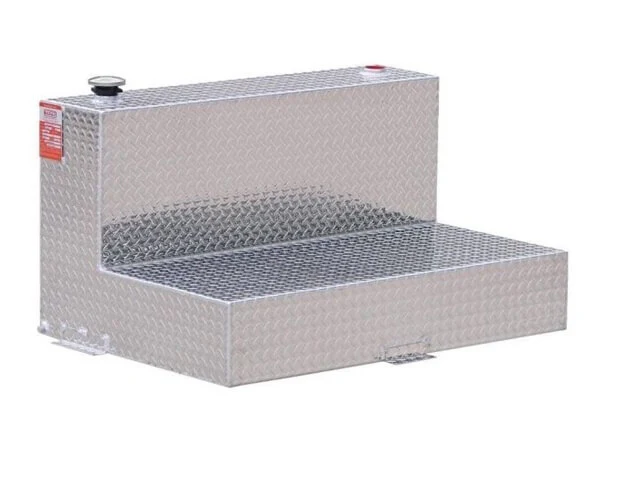

Aluminum Tank Industries L-Shape DOT approved Refueling Transfer Tank are legal in all 50 states for gasoline, kerosene, methanol, diesel, and aviation fuel when dispensing fuel with a fuel pump.
L-Shape refueling tanks range in size from 47 to 100 gallons and are designed to fit both short bed and long bed pickup trucks.
ATI L-shape Refueling Tanks are designed to be used with a crossover style toolbox or chest box. The bottom of the L-shape fits under most standard toolboxes.
The fuel tank can also be installed in reverse so the fuel tank can be removed without removal of your toolbox. The Two – 2” bungs allow for reversing the fuel fill cap and fuel transfer pump to the side you prefer best.
Standard aluminum transfer tanks are only designed to hold fuel pumps up to 15 gpm or 30 pounds of weight. Heavier fuel pumps require a heavy duty severe series aluminum tank.
ATI L-Shaped Refueling Transfer Tank Sizes:
- 47 gallon – 36.25″L x 30″W x 19″H fits short beds
- 80 gallon – 48.5″L x 28″W x 26″H fits short beds*
- 95 gallon – 48.5″L x 33″W x 26″H fits short beds*
- 95 gallon HD – 48.5″L x 33″W x 26″H fits short beds*
- 100 gallon – 60″L x 31″W x 24″H fits long beds
Note: all tanks have four 1.5 inch mounting tabs on each side of the tank. The mounting tabs increase the tank length by 3 inches.
*The 80 & 95 gallon sizes have mounting tabs that start at 3 inches from the front of the tank and extend 8 inches down the tank. The 80 & 95 gallon tanks will be able to fit between the wheel well of short bed trucks as long as the wheel well starts greater than 11 inches from the front of the cab and the distance between the wheel wells is greater than 48.5 inches.
The 95 gallon HD size is a heavy duty tank with 50% thicker aluminum plate (.19″ thickness) compared with the standard sizes. The heavy duty aluminum plate is designed for flatbed trucks and rougher conditions.
All ATI refueling tanks come standard with the following:
- Special Permit issued by the US Department of Transportation.
- Legal for gas, diesel, methanol, kerosene, aviation fuel, and other liquids.
- Commercial grade lockable vent / prevent filler cap.
- Fully baffled to reduce movement of contents.
- Two 2 inch NPT reinforced bungs for superior strength.
- A 3/8″npt drain plug,
- Hold down brackets.
- Pressure and leak detection test.
- Clean and free of debris inside and outside of the tank.
- 1 year limited warranty.
- a vent/prevent cap,
- Fully welded baffles to reduce slosh and add strength.
- Designed for use with transfer pumps up to 30 pounds.
*Severe series tanks required for pumps over 30 pounds.
These tanks are constructed from rugged diamond plate aluminum and are all available with a black or white powder coated finish.
Aluminum Tank Industries has been granted a special permit from the U.S. Department of Transportation for the legal manufacture, mark and selling of legal aluminum refueling transfer tanks. These tanks can be used for commercial and state applications.
